PAPER CORE CUTTING MACHINE
PAPER CORE CUTTING MACHINE
TECHNICAL SPECIFICATION
Power Supply | 0.7Kw, 220/415 V, 50 Hz |
Operation | Pneumatic |
Core Length | 1000 to 3500 mm Length |
Core Diameter | Customized |
Core Thickness | 4mm to 12mm |
Nos of Cutter | 1 Nos |
( PNEUMATIC PRESSURE CUTTING )
PAPER CORE CUTTING MACHINE ( ALSO AVAILABLE IN MULTIPLE CUTTER )
TECHNICAL SPACIFICATION
Power Supply | 0.7Kw, 220/415 V, 50 Hz |
Operation | Pneumatic |
Core Length | 1000 to 1200mm L |
Core Diameter | Customized |
Core Thickness | 4mm to 12mm |
Nos of Cutter | 4 to 8 Nos |
Features:
- This machine was designed to give multi pal cut in one stroke.
- If you have to cut full length core in 4 to 6 pcs in one stroke this machine is best suitable to your requirement.
- It also gives burs free and smooth cutting.
- Cutter stroke is pneumatic
- Sturdy Designed made from Heavy duty CI/MS Wall or Channel/Angle Structure
- It comes with Burr free smooth cutting
- We use Specially designed heigh quality HSS Rotary Blades for paper core cutting Machine
- We design machine base customer needs only.
- Our machine operation is very Simple and Easy for machine operators.
- Minimum cutting can be 10mm onwards.
- We have varity of range from Automatic to Semi-automatic, Pneumatic to Manual, Single Cut to Multi cut base on customer’s need.
- Our core cutting Machine gives you 3 to 18 cuts in a minute base on its model.
- We can designed customize machine also base on customer need.
PAPER CORE CUTTING MACHINE

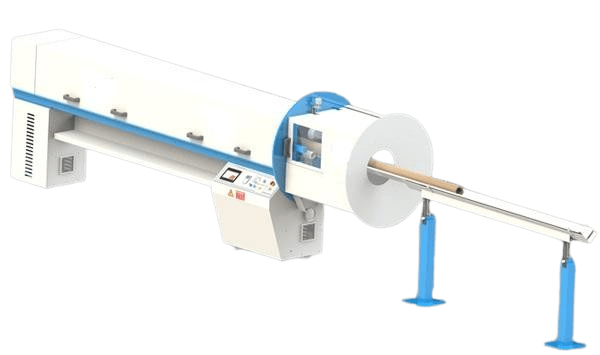

Automatic Paper Core Cutting Machine
TECHNICAL SPACIFICATION
Power Supply | 2.0Kw, 220/415 V, 50 Hz |
Operation | PLC Control Pneumatic |
Core Length | 1000 to 2500mm Length |
Core Diameter | Customized |
Core Thickness | 4mm to 18mm |
Cutter Stroke | Pneumatic |
Nos of Cutter | 1 Nos HSS |
Core Loading | Manual |
Tolerance | +- 1 mm |
Features:
- We design this machine base on customer’s requirement.
- This machine will provide burr free cutting with semi skilled labor at optimum output rate.
- It can give 12 cuts in 1 minute time.
- Sturdy Designed made from Heavy duty CI/MS Wall or Channel/Angle Structure
- It comes with Burr free smooth cutting
- We use Specially designed heigh quality HSS Rotary Blades for paper core cutting Machine
- We design machine base customer needs only.
- Our machine operation is very Simple and Easy for machine operators.
- Minimum cutting can be 10mm onwards.
- We have varity of range from Automatic to Semi-automatic, Pneumatic to Manual, Single Cut to Multi cut base on customer’s need.
- Our core cutting Machine gives you 3 to 18 cuts in a miniute base on its model.
- We can designed customize machine also base on customer need.
Automatic Paper Core Cutting Machine

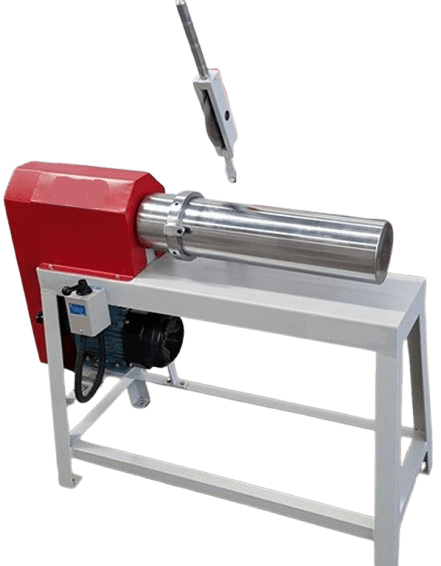

SINGLE SHAFT CORE CUTTING MACHINE
TECHNICAL SPACIFICATION
Power Supply | 0.7Kw, 220/440 V, 50 Hz |
Operation | Manual |
Core Length | 600mm Length |
Core Diameter | Customized |
Core Thickness | 4mm to 10mm |
Nos of Cutter | 1 Nos |
Features:
- This is manual cutting machine. Cutter position can be move from left to right by hand push.
- It can be design base on customers requirement.
- Sturdy Designed made from Heavy duty CI/MS Wall or Channel/Angle Structure
- It comes with Burr free smooth cutting
- We use Specially designed heigh quality HSS Rotary Blades for paper core cutting Machine
- We design machine base customer needs only.
- Our machine operation is very Simple and Easy for machine operators.
- Minimum cutting can be 10mm onwards.
- We have varity of range from Automatic to Semi-automatic, Pneumatic to Manual, Single Cut to Multi cut base on customer’s need.
- Our core cutting Machine gives you 3 to 18 cuts in a miniute base on its model.
- We can designed customize machine also base on customer need.
ECONOMY MODEL
