SOLVENTLESS LAMINATION MACHINE

KMT 5005 SOLVENTLESS

SOLVENTLESS LAMINATION MACHINE

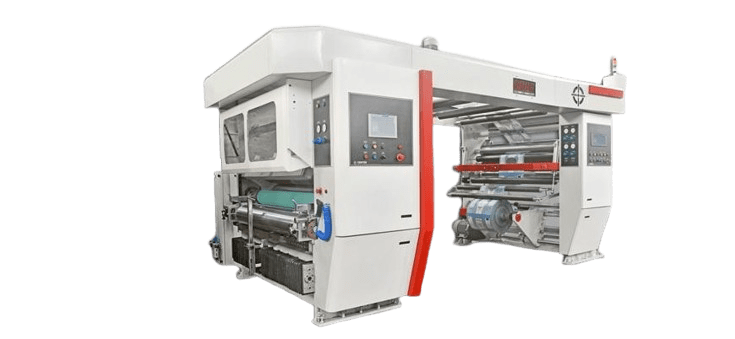

SOLVENTLESS LAMINATION MACHINE (KMT 5005 SOLVENTLESS )

Solvent less Lamination Machine Advantages:



1)Reliable solvent less laminator

2)More capable, more refined, with five roller coating system

3)Rigid shaft-less unwind-rewind units

4)Closed loop tension control via dancer roller

5)Computer Controls for all machine functions

6)Exceptional lamination pressure control for remarkable finished product

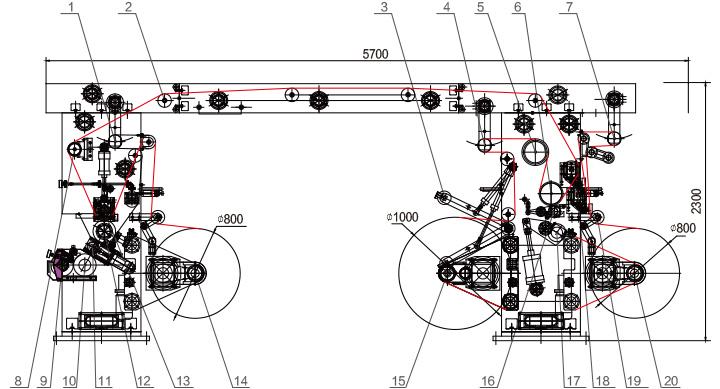

1. Tension Swimming Roller
2. Feeding Guide Roller
3. Rewinding Pressure Roller
4. Tension Swimming Roller
5. Cooling Roller
6. Laminating Roller
7. Tension Swimming Roller

8. Tension Sense Roller
9. Doctor Blade Roller
10. Metering Roller
11. Gluing Roller
12. Coating Roller
13. Coating Pressure Roller
14. The First Unwinding

15. The Rewinding
16. Laminating Pressure Roller
17. Laminating Back
       Pressure Roller
18. Adjustable Guide Roller
19. Moving Guide Roller
20. The Second Unwinding



Technical Parameters:

Max. Laminating Speed
Max. Laminating Width
The 1st Diameter of Unwinding
The 2nd Diameter of Unwinding
Diameter of Rewinding
Glue Spread
Laminated Film Type

350/400m/ 450 / 500 min
1050/1250/1350 mm
Max.Φ800mm
Max.Φ800mm
Max.Φ1000mm
1.0~3.0g/m
BOPP, OPP, NY, PVC, CPP and etc
